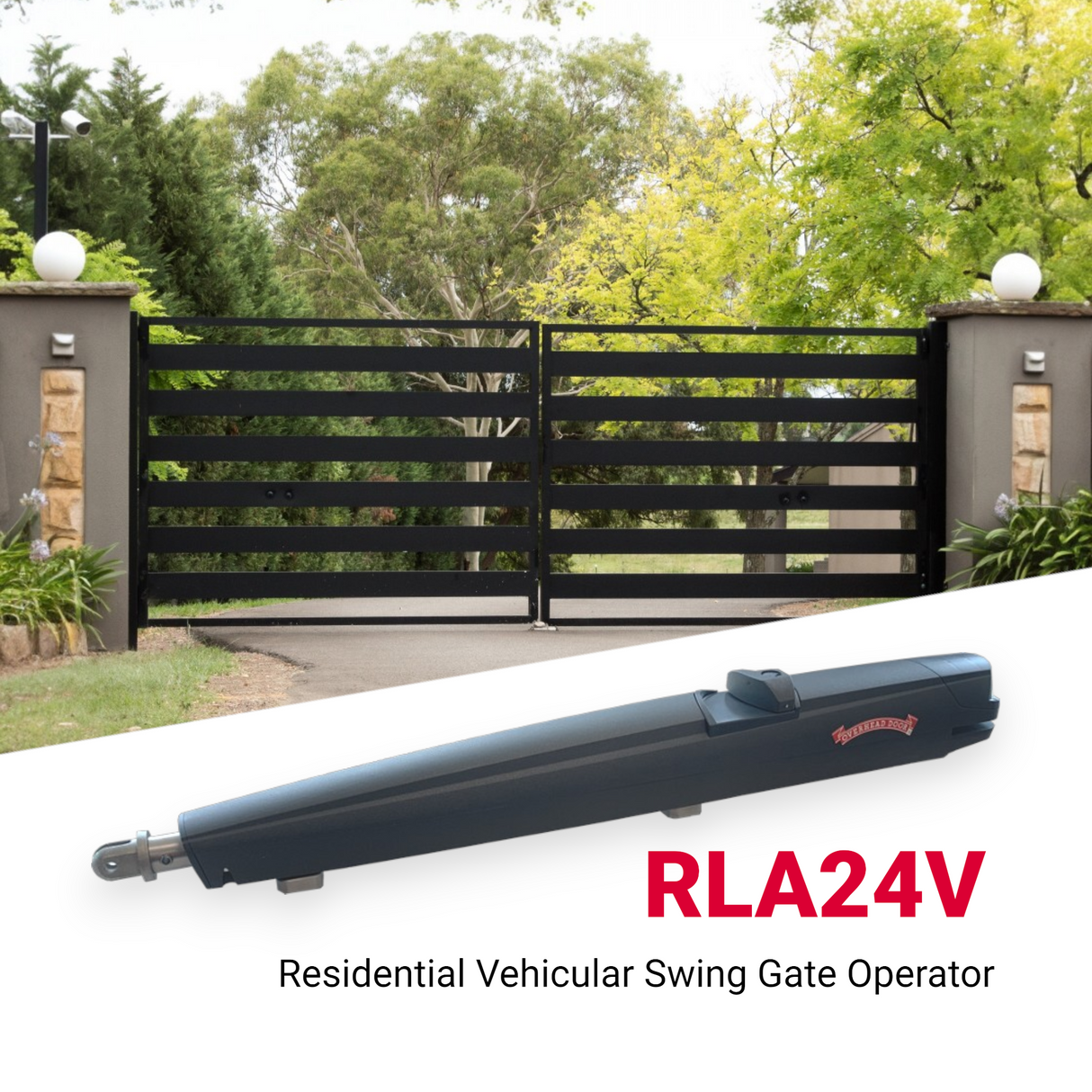

Overhead Door Dual Swing Gate Operator | RLA24V

This 24VDC automatic swing gate operator delivers reliable performance for residential and commercial gates up to 16 feet wide and 850 lbs. Featuring adjustable speed, battery backup with up to 250 cycles, built-in solar charge controller, and advanced safety inputs, it’s designed for smooth and secure operation. The dual-line LCD display makes programming easy, while the optional Wi-Fi board enables smart control with OHD Anywhere. Has a 2-year warranty included.

Specs:

Type: Actuator
Max Width: 16 FT
Max Weight: 850 LBS
Speed: 15-18s/90°
Motor Type: 24V DC Brushed
Battery Backup: Yes
UL Listed: Class I, II, III

Construction:

• Worm gear primary reduction
• Cast aluminum upper and lower body
• Stainless steel extension tube
• Keyed release lever for manual operation
• Enclosure and controls ready for secondary arm, no additional boards needed

Includes:

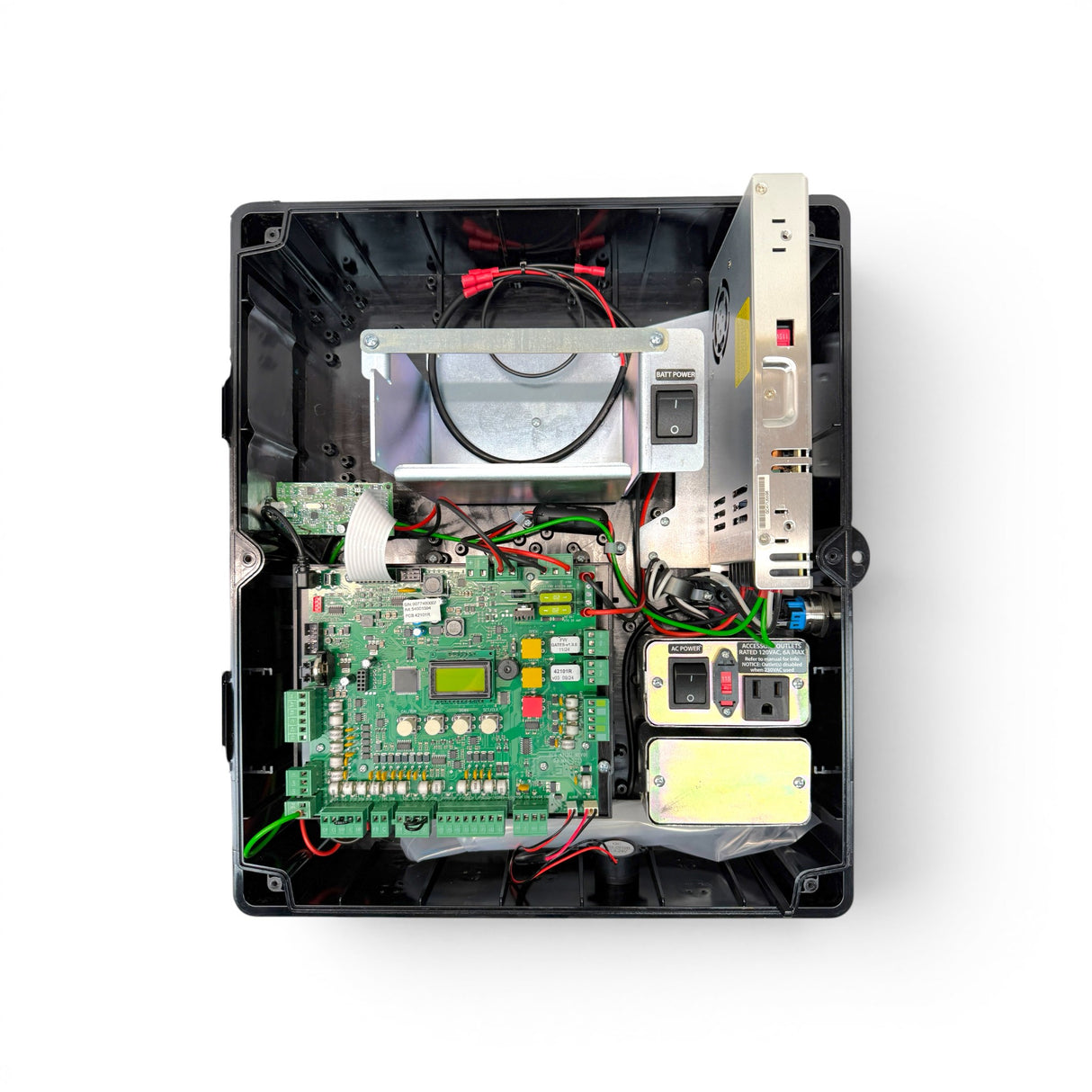

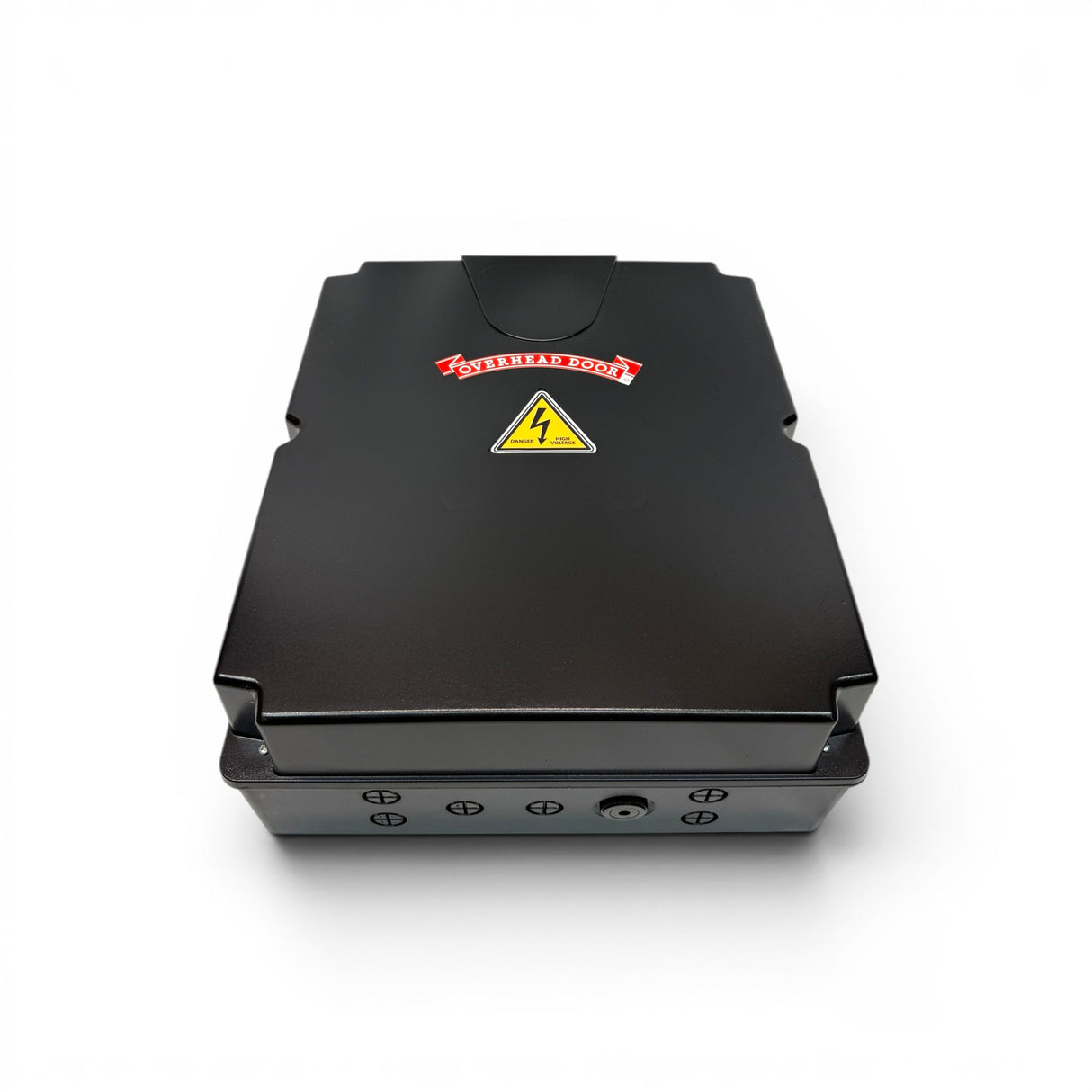

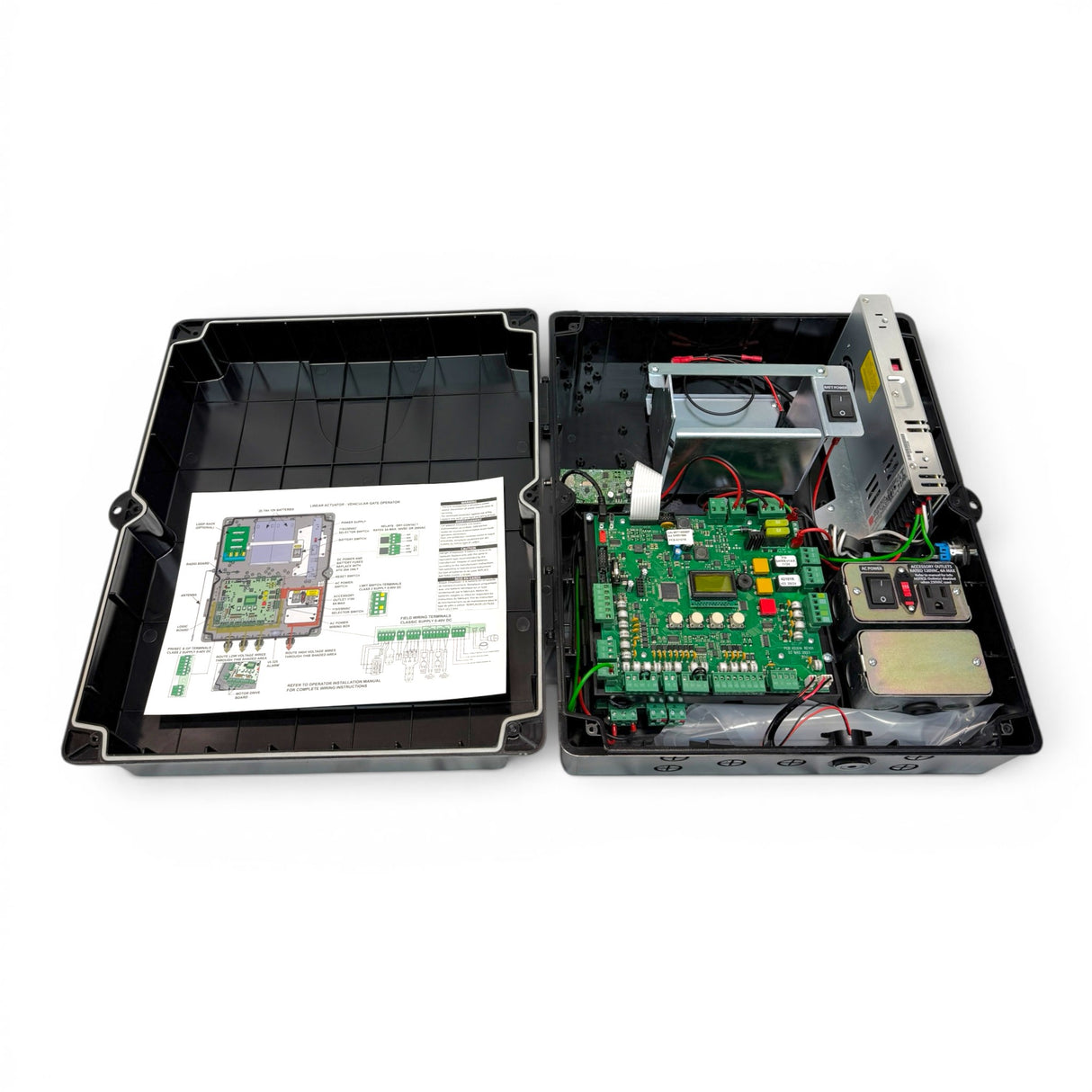

• 1x Control Panel

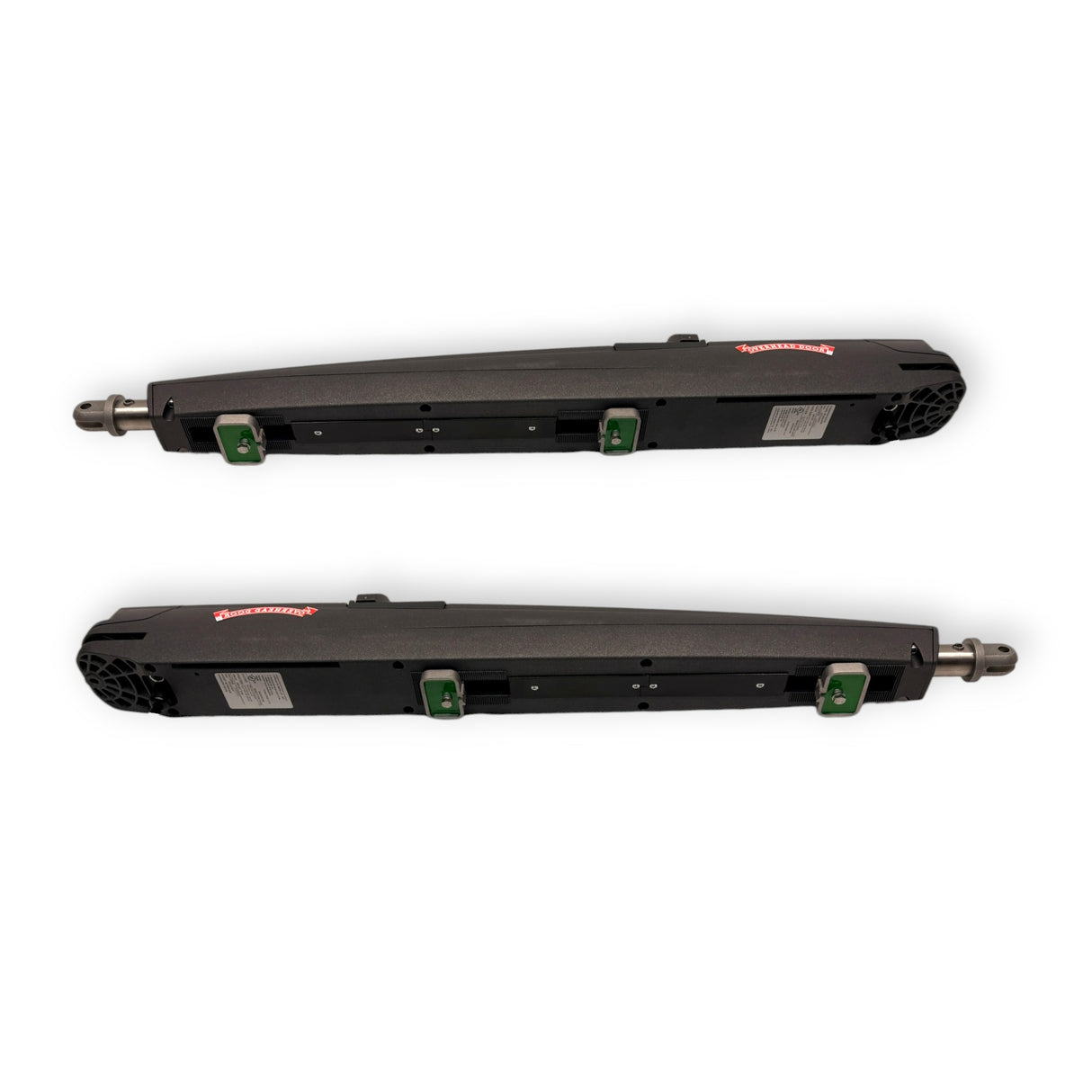

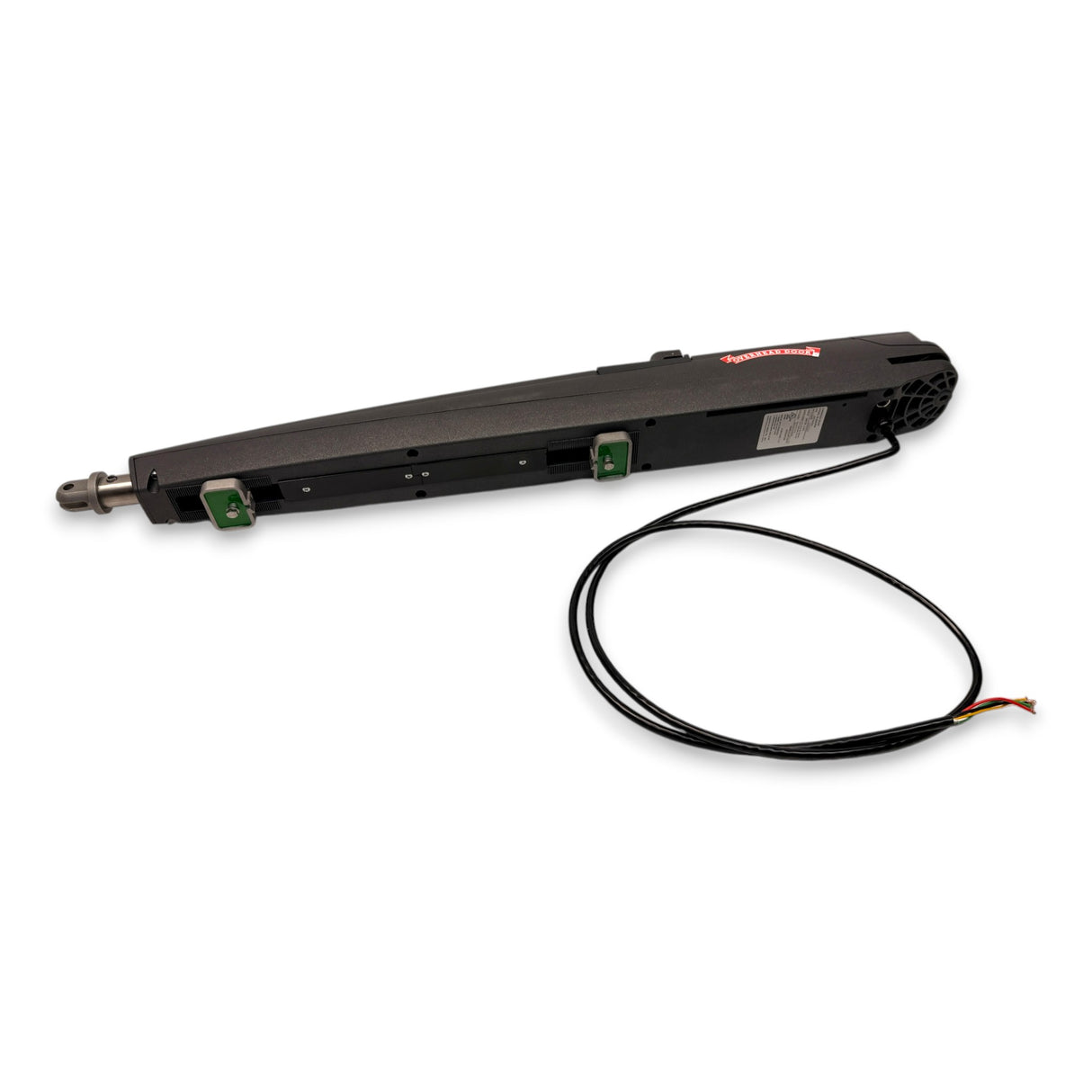

• Primary and Secondary Arms
• 1x 40 FT Motor Cable

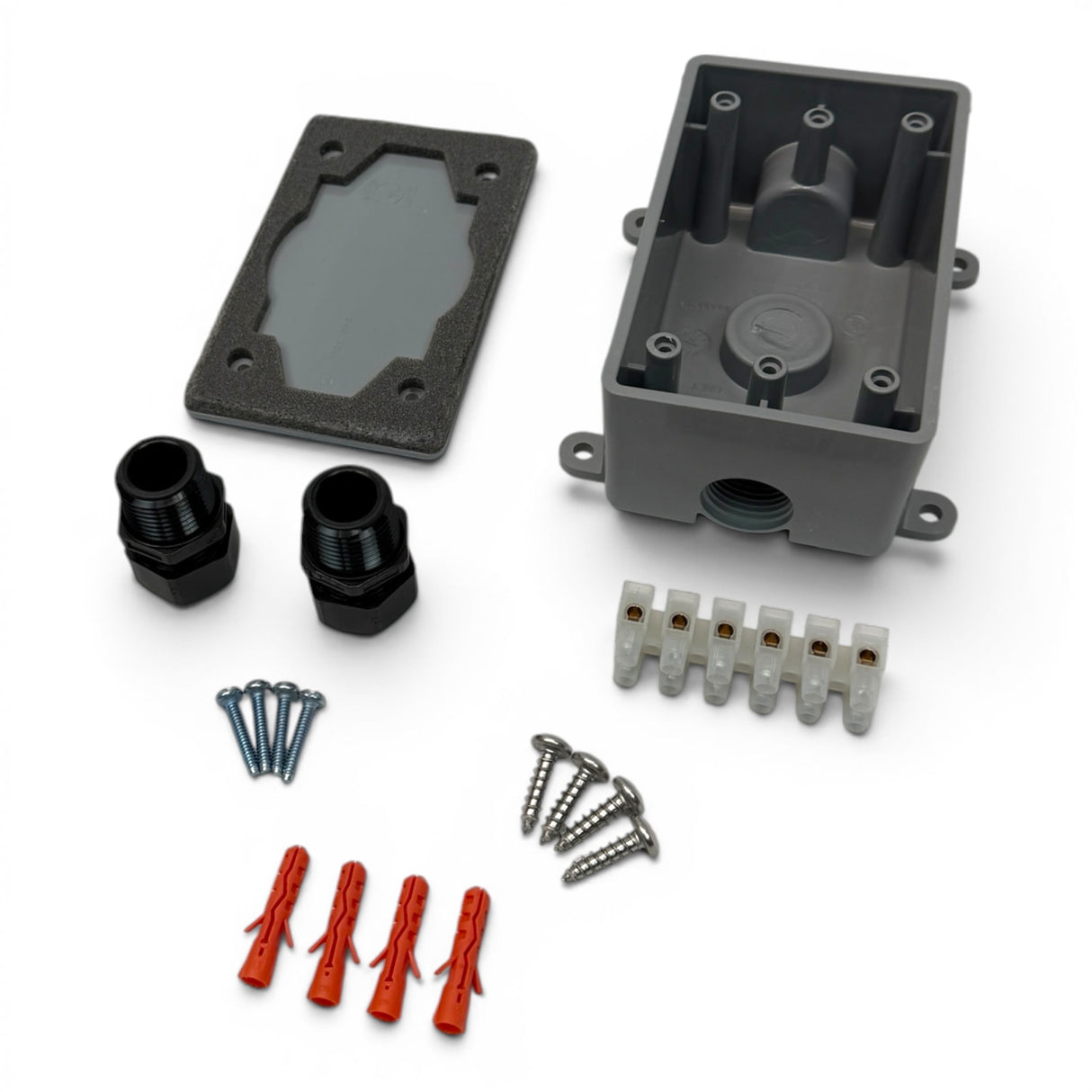

• 1x Junction Box

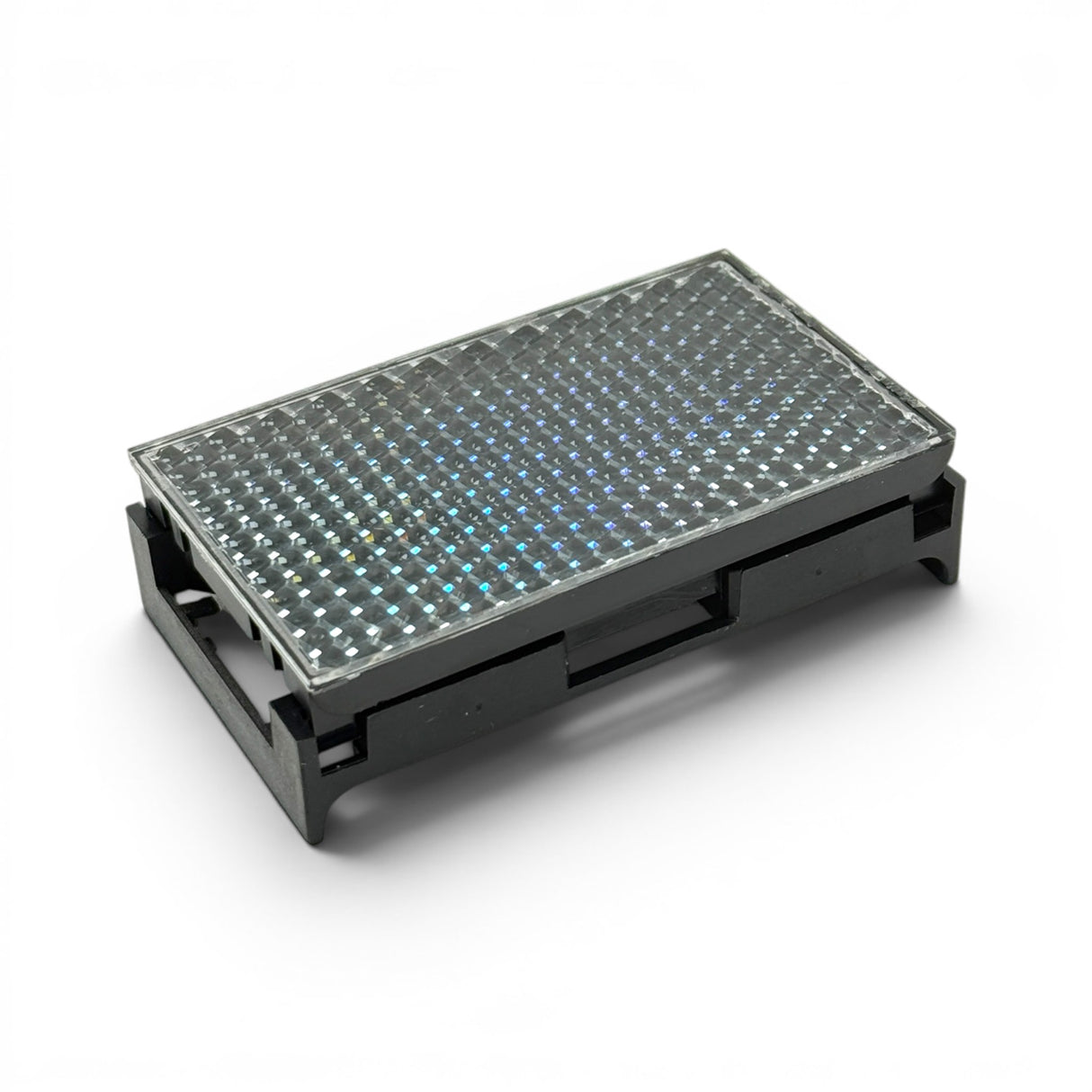

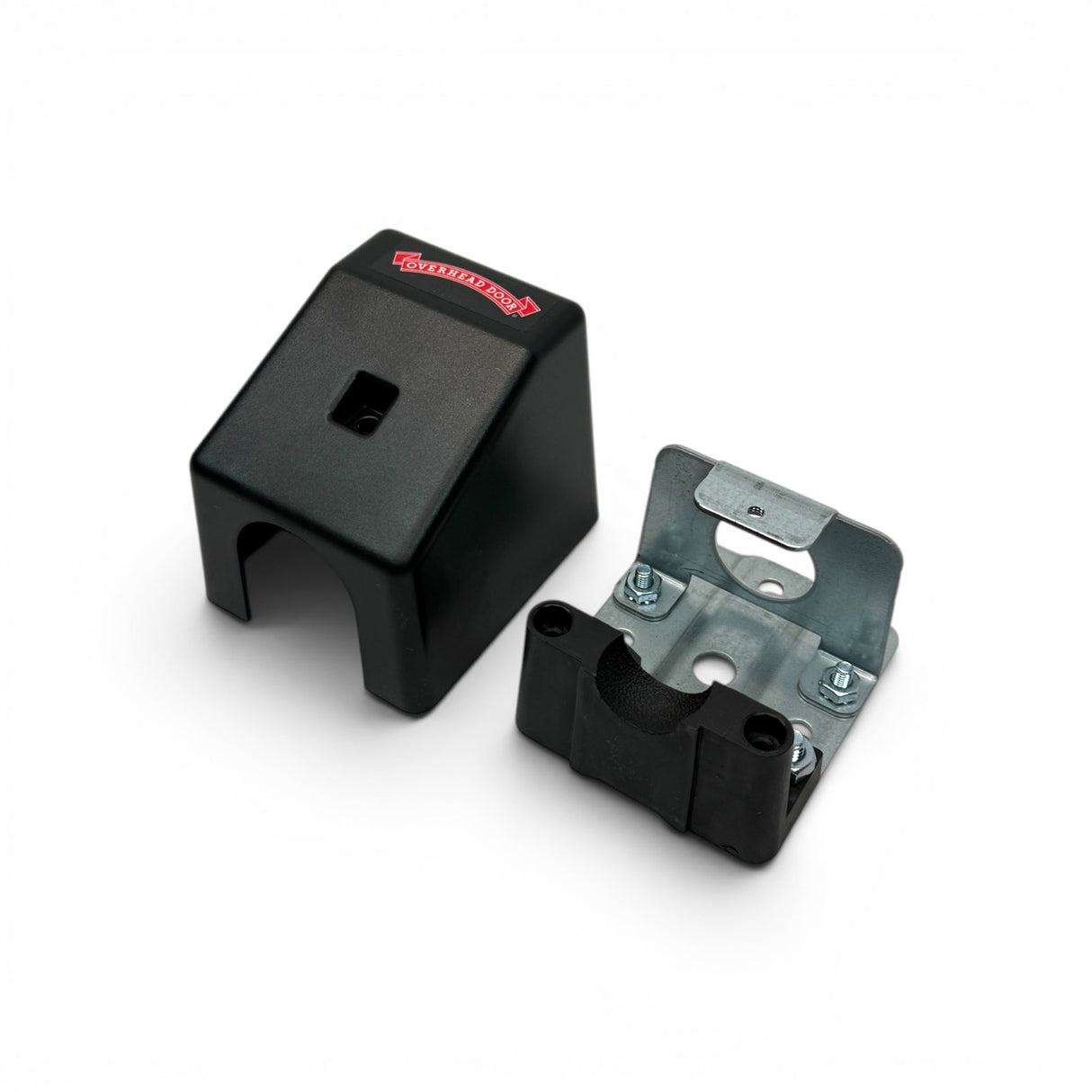

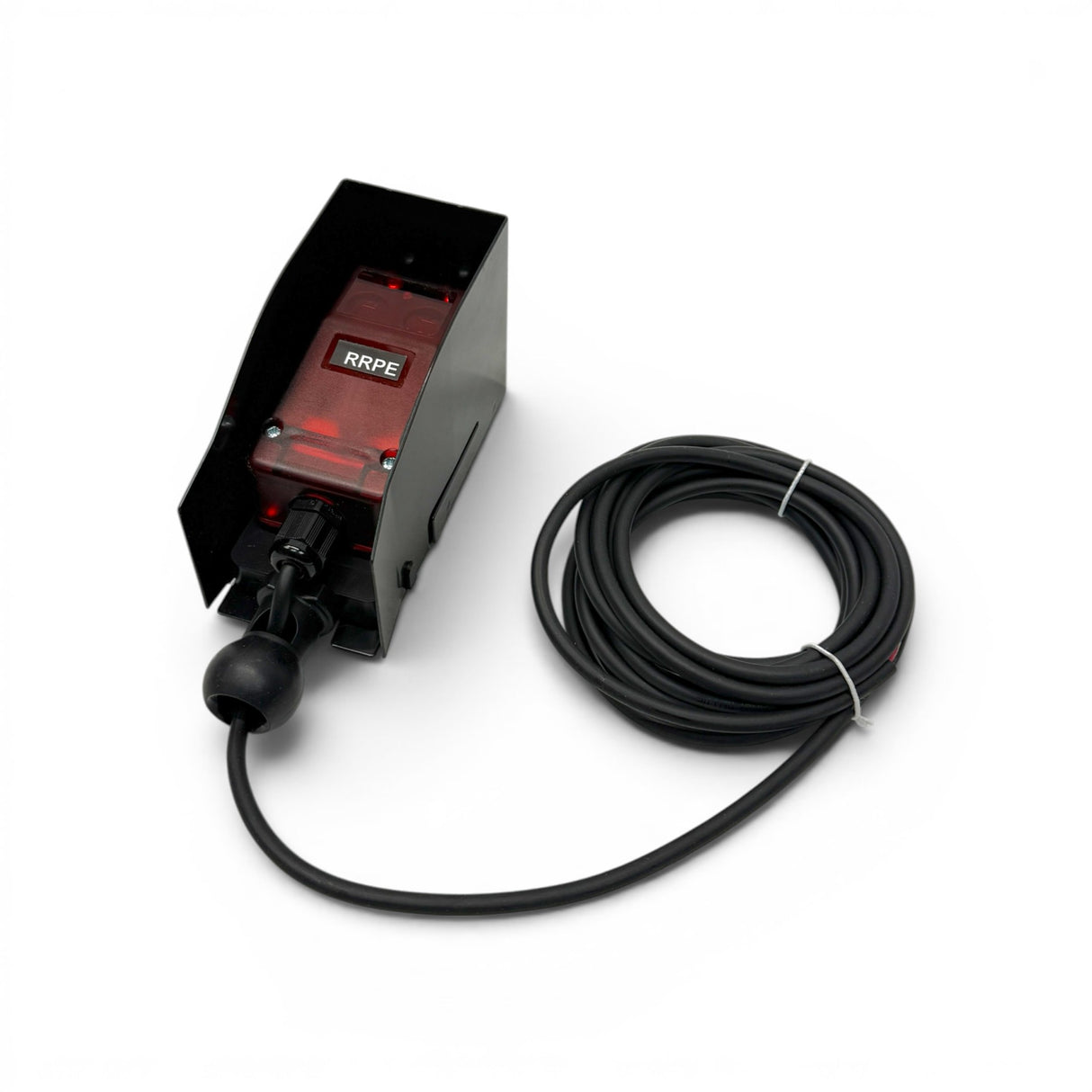

• Retro-Reflective Photo eye (GAKRRPE.S)

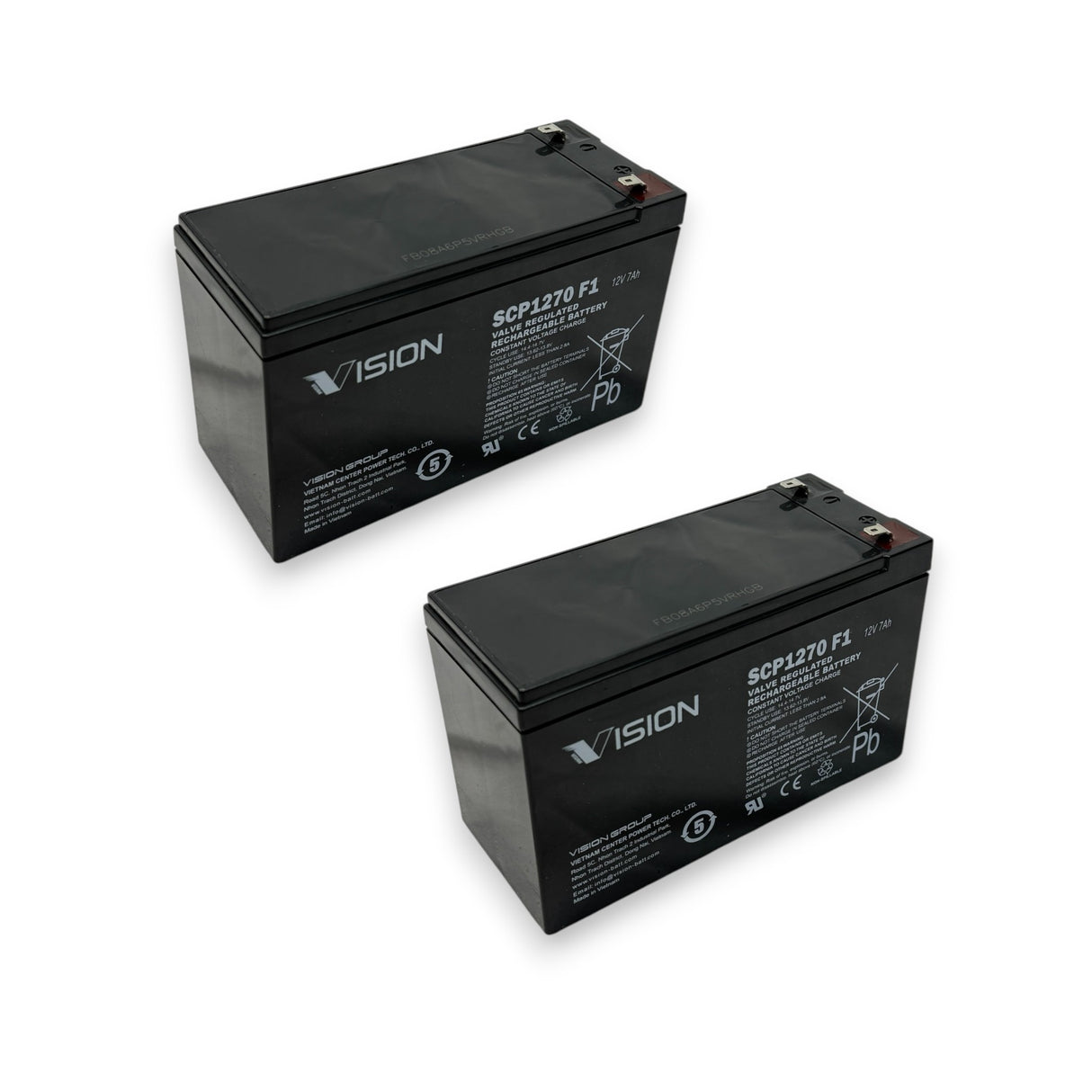

• 2x 12V 7AH SLA Batteries
• 2x 3-Button 315/390 MHz Intellicode Remotes
