Commercial Photo Safety Sensors | NEMA-4X

This NEMA-4 commercial photo eye kit provides UL 325 entrapment protection for commercial and industrial overhead doors. Two coded infrared sensors mount in flexible TPE brackets on either side of the door opening. The flexible design absorbs collisions and impacts that destroy rigid photo eyes, and the NEMA 4X / IP65 housing stands up to moisture, weather, and dust. Onboard LEDs indicate power and alignment, so setup and troubleshooting don't require a meter.

Compatible with Overhead Door and Genie X-Series commercial/industrial operators.

Specs:

Range: 45 FT (14 m)
Supply Voltage: 6-40 VDC, Class 2
Power Consumption: 50 mA max
Output: Monitored 2-wire
Protection Class: NEMA 4X, IP65
Operating Temp: -10°F to +165°F
Sensor Cable: 50 FT per sensor, PVC insulated, 2 x 22 AWG
Bracket Height: Adjustable 6" - 7.5"
Housing Material: Polypropylene sensor, TPE bracket
Safety Standard: UL 325:2010 recognized

Kit Includes:

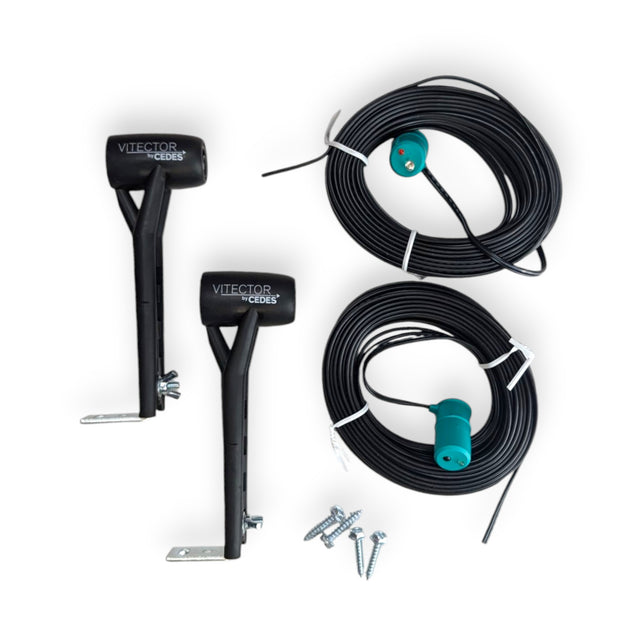

• OSE-S 5012 optical sensor set, transmitter and receiver (10013694-2)
• OPE-S 1000 OPTOEYE bracket set, black (10036873-2)

Installation Notes:

• Disconnect power to the operator before installing.
• Sensors are coded. The transmitter (Tx) and receiver (Rx) are not interchangeable.
• Mount no higher than 6" above the ground on doors, or 27.5" on gates.
• Mounts with #8 sheet metal screws.
• Bracket height adjusts from 6" to 7.5" once the wing nut is loosened; sensor angle adjusts separately.
• Red and green LEDs report normal operation, no power, bad alignment or obstruction, and sunlight interference.
• An optional conduit connection set is available for installations that require all wiring in conduit. It includes flexible conduit and a junction box with a 1/2" knockout.
