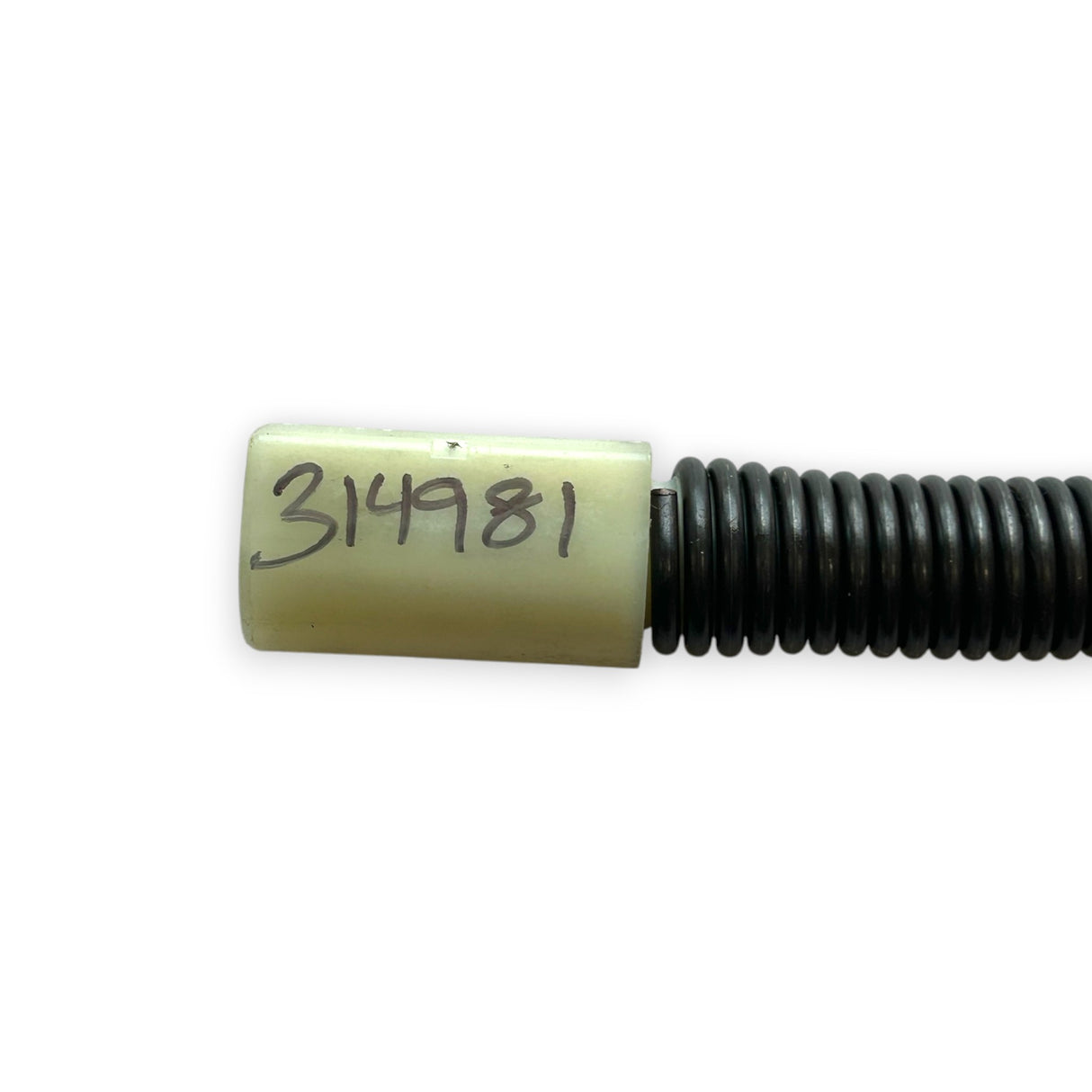

0.143X45.72 | TorqueMaster Plus Spring | TMP/TM3
Regular price
$62.97
Unit price
Wayne Dalton | SKU:
314981
Spring Info: TM3/TM,PLUS 0.143X45.72 RH
If your door uses a two-spring TorqueMaster Plus system and one spring is 0.143X45.72 (RH), the matching Left-Hand (LH) spring is most often one of the following:
OEM Wayne Dalton TorqueMaster Spring replacements are in stock and ready to ship! Always verify the size of your opposite spring before ordering.
0.143X45.72 | TorqueMaster Plus Spring | TMP/TM3
Regular price
$62.97
Unit price
-
Spring TypeTorqueMaster Plus | TMP/TM3
-
Counterbalance/Lift Weight75 - 77.5 LBS
-
Door Height6'0" - 7'0"
-
Inside Diameter (ID)0.650
-
Wire Size0.143
-
Coil Length45.72
-

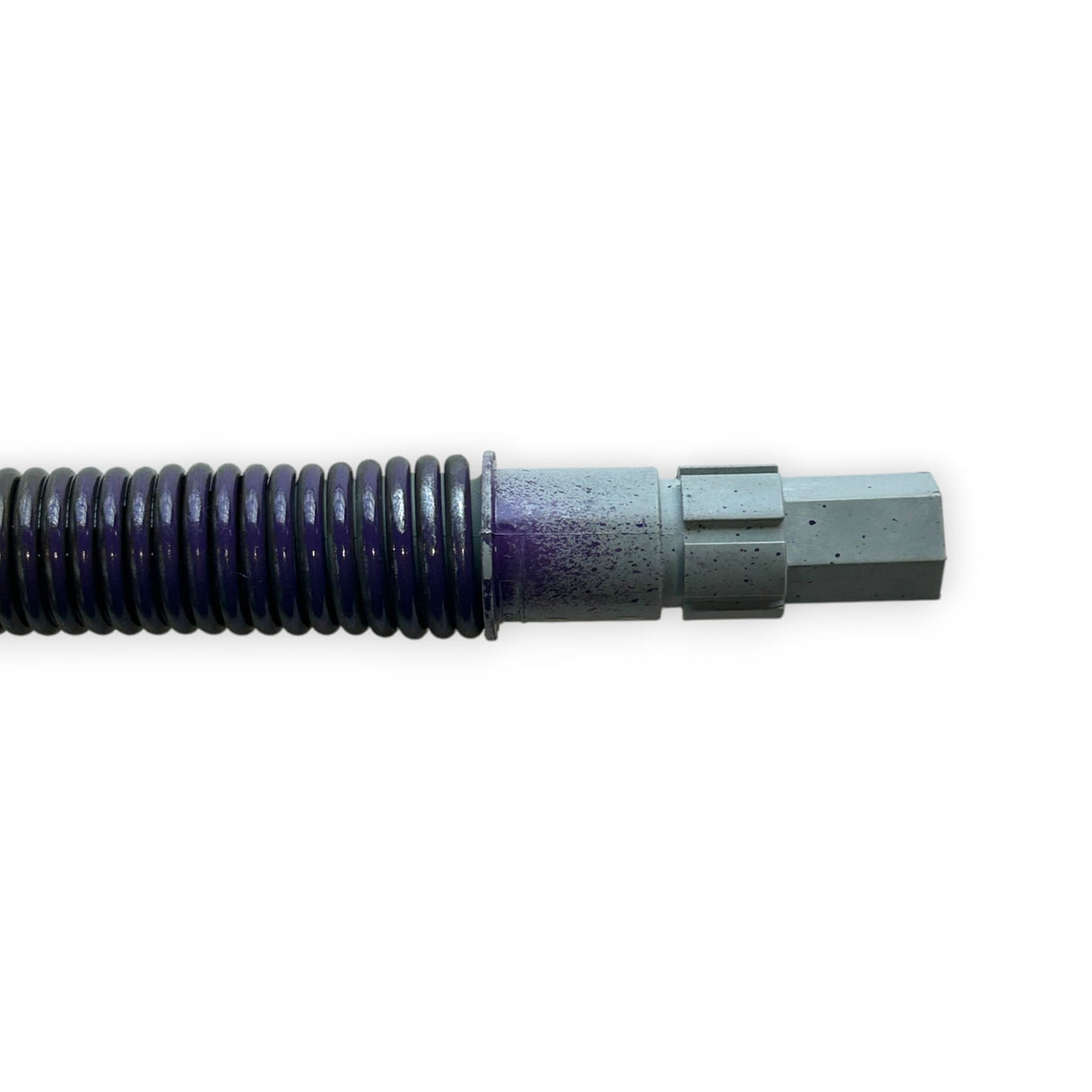

Color CodePurple
When replacing TorqueMaster Springs it is necessary to identify if the door utilizes the original TorqueMaster One, or the newer TorqueMaster Plus spring system.
The easiest way to distinguish these is by visually inspecting the end brackets. ToqueMaster One has a counter and winding fitting to the end, while TorqueMaster Plus has the anti-drop pawl and rachet gear inside the end bracket. You can also determine each type of spring system by looking at the winding shaft on the end of the springs.
The counterbalance weight (e.g. Wt. or Wgt.) on the sticker is the most important when determining the correct spring needed.
The spring's job is to store the mechanical energy from the weight of the door. When this is done correctly the Opener | Operator has to do minimal work. It is best practice to choose springs within 10 pounds of the garage door weight as outside that will cause the motor to work harder than needed to open/close the garage door.
Corresponding Parts
Spring Label Example
These labels/stickers are located on the shaft that the springs are inside. Labels are often Yellow, Blue, or White and may have a slightly different layout than what is seen below.
How to Install ToqueMaster Springs
A quick and easy DIY project for your broken Wayne Dalton garage door.
