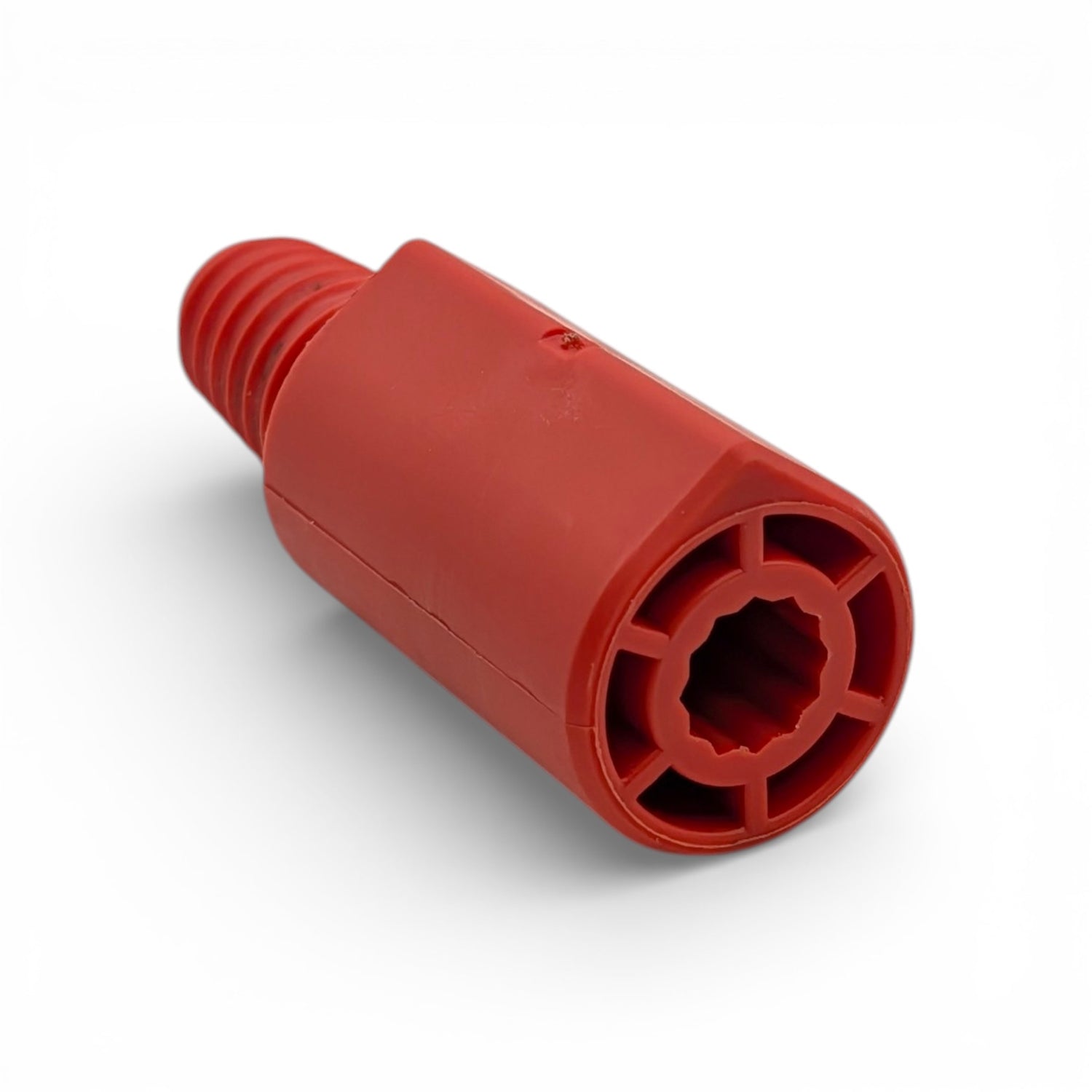

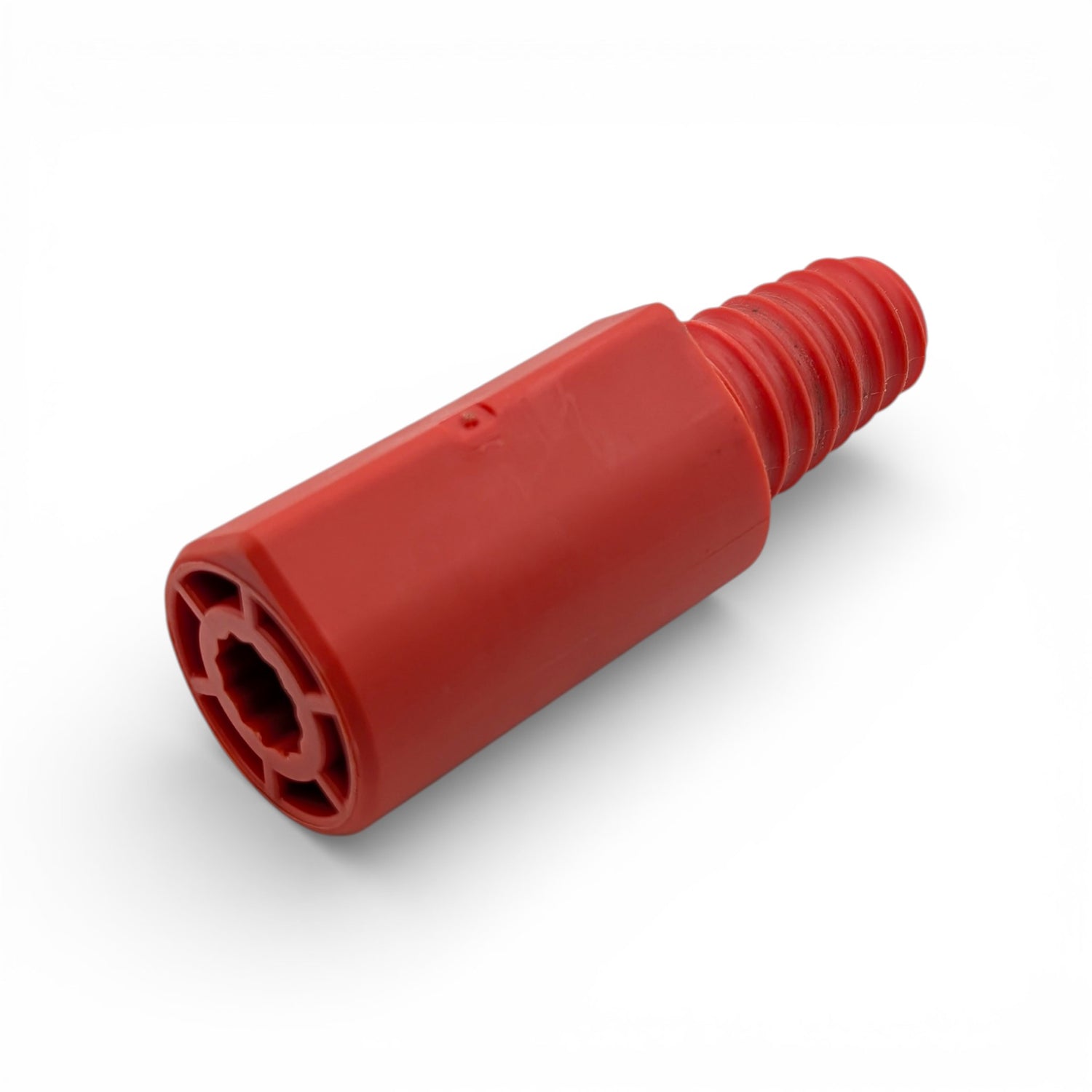

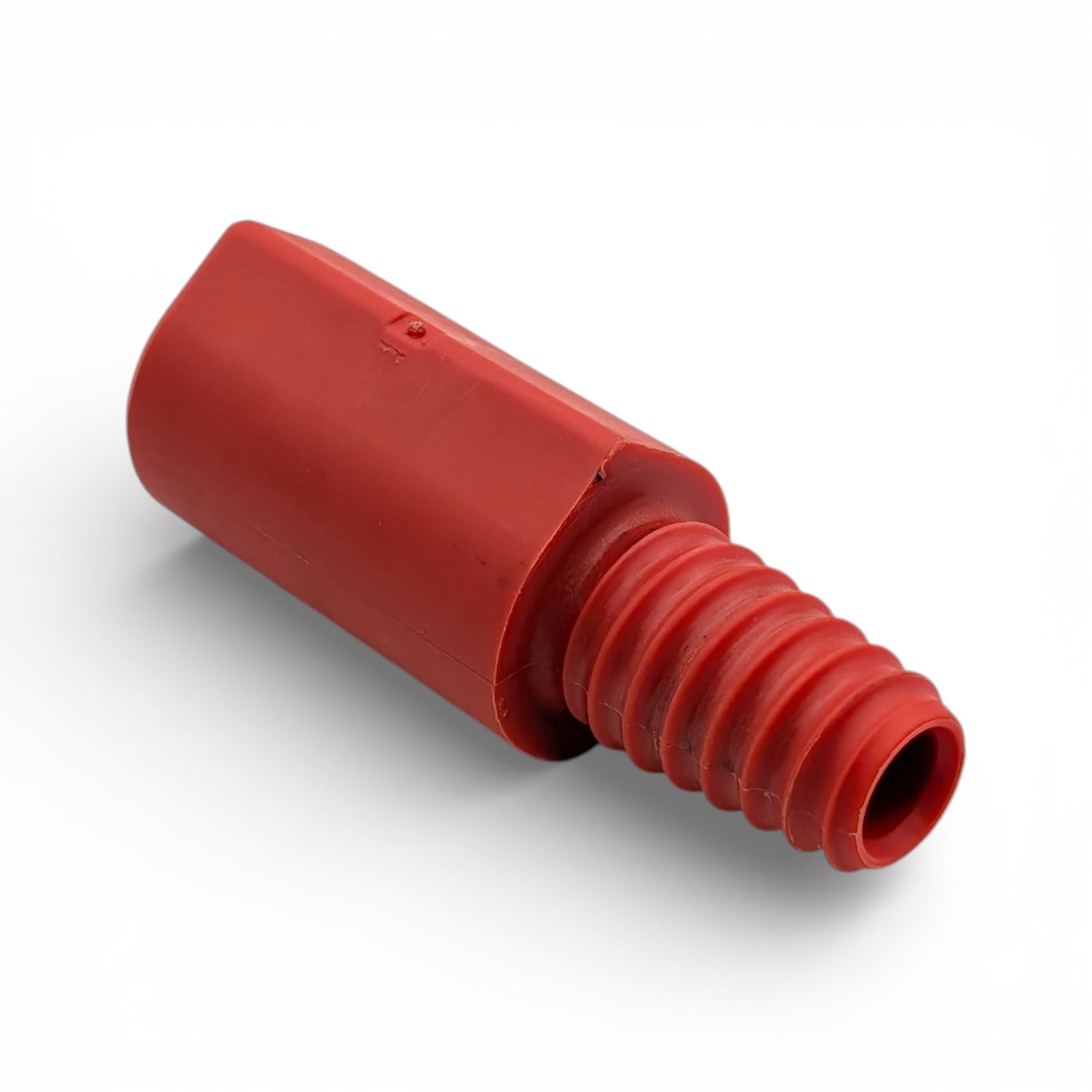

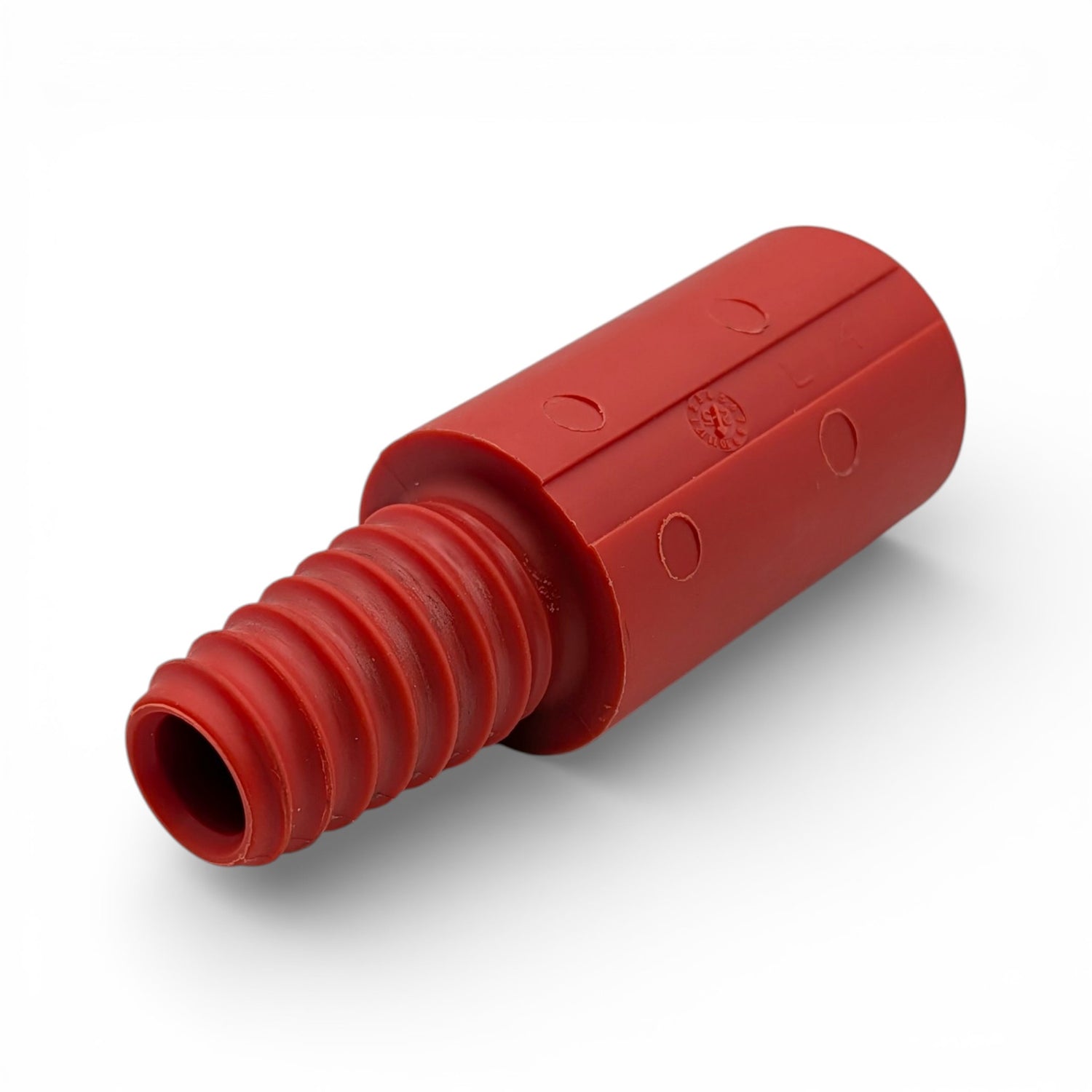

TorqueMaster Plastic Stationary End Cone | Left-Hand
Regular price
$14.97
Unit price
Wayne Dalton | SKU:
Left-Hand stationary end cone for the TorqueMaster Original and TorqueMaster Plus Spring Systems.
These cones are installed on springs without internal rods, meaning the spring has a counterbalance/lift weight of less than 85 lb.
0.650 Inside Diameter
TorqueMaster Plastic Stationary End Cone | Left-Hand
Regular price
$14.97
Unit price
When replacing TorqueMaster Springs it is necessary to identify if the door utilizes the original TorqueMaster One, or the newer TorqueMaster Plus spring system.
The easiest way to distinguish these is by visually inspecting the end brackets. ToqueMaster One has a counter and winding fitting to the end, while TorqueMaster Plus has the anti-drop pawl and rachet gear inside the end bracket. You can also determine each type of spring system by looking at the winding shaft on the end of the springs.
The counterbalance weight (e.g. Wt. or Wgt.) on the sticker is the most important when determining the correct spring needed.
The spring's job is to store the mechanical energy from the weight of the door. When this is done correctly the Opener | Operator has to do minimal work. It is best practice to choose springs within 10 pounds of the garage door weight as outside that will cause the motor to work harder than needed to open/close the garage door.
Corresponding Parts
Spring Label Example
These labels/stickers are located on the shaft that the springs are inside. Labels are often Yellow, Blue, or White and may have a slightly different layout than what is seen below.
How to Install ToqueMaster Springs
A quick and easy DIY project for your broken Wayne Dalton garage door.
