0.168X64.27 | TorqueMaster Plus Spring | TMP/TM3
Regular price
$114.97
Unit price

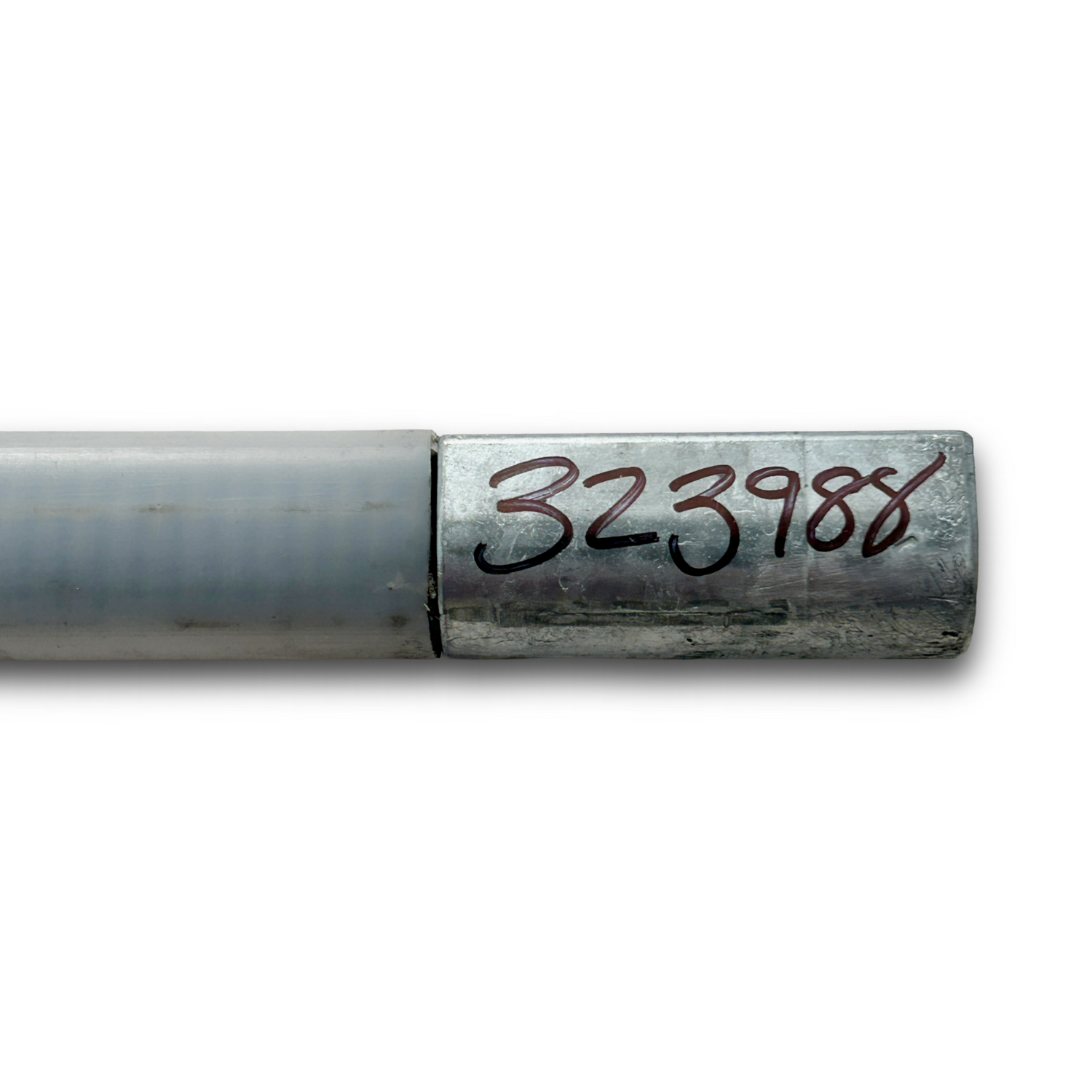

Wayne Dalton | SKU:
323988
Spring Info: TM3/TM,PLUS 0.168X64.27 RH
If your door uses a two-spring TorqueMaster Plus system and one spring is 0.168X64.27 (LH), the matching Right-Hand (RH) spring is most often the following:
OEM Wayne Dalton TorqueMaster Spring replacements are in stock and ready to ship! Always verify the size of your opposite spring before ordering.
0.168X64.27 | TorqueMaster Plus Spring | TMP/TM3
Regular price
$114.97
Unit price
Resources
-
Spring TypeTorqueMaster Plus | TMP/TM3
-
Door Height6'0" - 7'0"
-
Inside Diameter (ID)0.650
-
Wire Size0.168
-
Coil Length64.27
-
Color CodePurple
When replacing TorqueMaster Springs it is necessary to identify if the door utilizes the original TorqueMaster One, or the newer TorqueMaster Plus spring system.

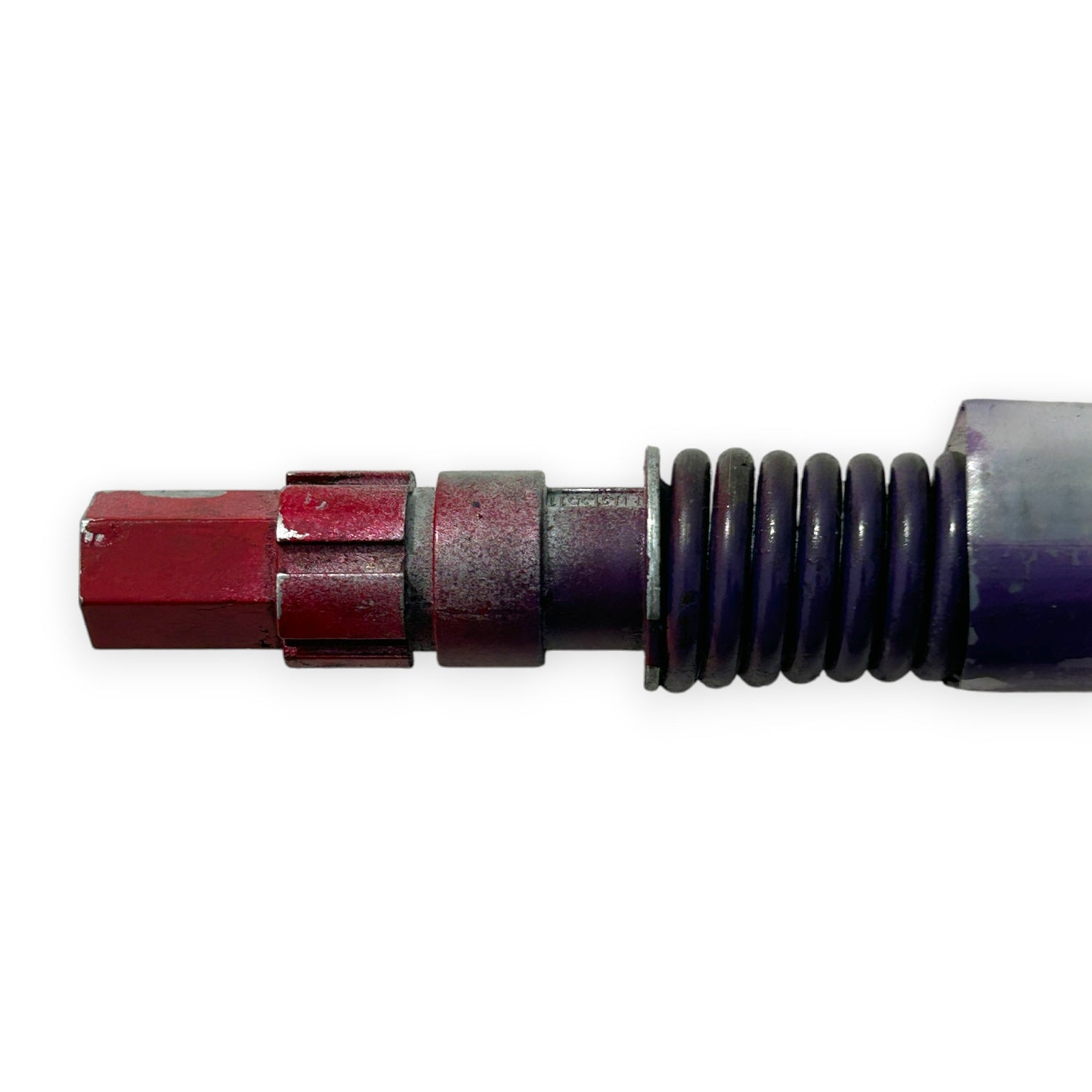

The easiest way to distinguish these is by visually inspecting the end brackets. ToqueMaster One has a counter and winding fitting to the end, while TorqueMaster Plus has the anti-drop pawl and rachet gear inside the end bracket. You can also determine each type of spring system by looking at the winding shaft on the end of the springs.
The counterbalance weight (e.g. Wt. or Wgt.) on the sticker is the most important when determining the correct spring needed.
The spring's job is to store the mechanical energy from the weight of the door. When this is done correctly the Opener | Operator has to do minimal work. It is best practice to choose springs within 10 pounds of the garage door weight as outside that will cause the motor to work harder than needed to open/close the garage door.
Corresponding Parts
Spring Label Example
These labels/stickers are located on the shaft that the springs are inside. Labels are often Yellow, Blue, or White and may have a slightly different layout than what is seen below.
How to Install ToqueMaster Springs
A quick and easy DIY project for your broken Wayne Dalton garage door.
TorqueMaster Spring Information
View all-
-
Ordering Torsion Springs
Learn how to order torsion springs correctly. Measure Inside Diameter, Wire Size, Length, and Wind Direction to ensure the perfect fit for your garage door.
-
Converting TorqueMaster Original to TorqueMaster Plus: Parts & Differences
If you’re looking to upgrade to a TorqueMaster Plus spring system, you’re not in this alone. The TorqueMaster Plus has been in production since 2007 and is the current counterbalance...
-
TorqueMaster Original Replacement Springs
Introduced in 1994, the TorqueMaster Original was Wayne Dalton’s first enclosed counterbalance system, designed to be safer and faster to install than traditional torsion springs. In 2007, manufacturing changes led...
-
What Happened to the Wayne Dalton idrive?
The Wayne Dalton idrive is mounted to the garage door header directly above the garage door. This wall-mounted design clears up space and eliminates noise associated with chain, screw, and...
-
All About TorqueMaster Springs
FAQ | How do I order Wayne Dalton TorqueMaster springs? Do I need to convert to a torsion spring? Are TorqueMaster springs bad? What style of TorqueMaster spring do I...
-
Ordering Wayne Dalton TorqueMaster Springs
If your TorqueMaster springs have broken, we want to make it as quick, efficient, and safe as possible to replace them. These 3 steps will help guide you through the...
-
Why Service Providers Want You to Convert Your Springs
If you have a TorqueMaster spring you will not need to convert to a Torsion Spring. Homeowners and customers just like you have fixed their garage in as little as...
Customer Reviews
Overall rating: 5.0 / 5 from 11 reviews.

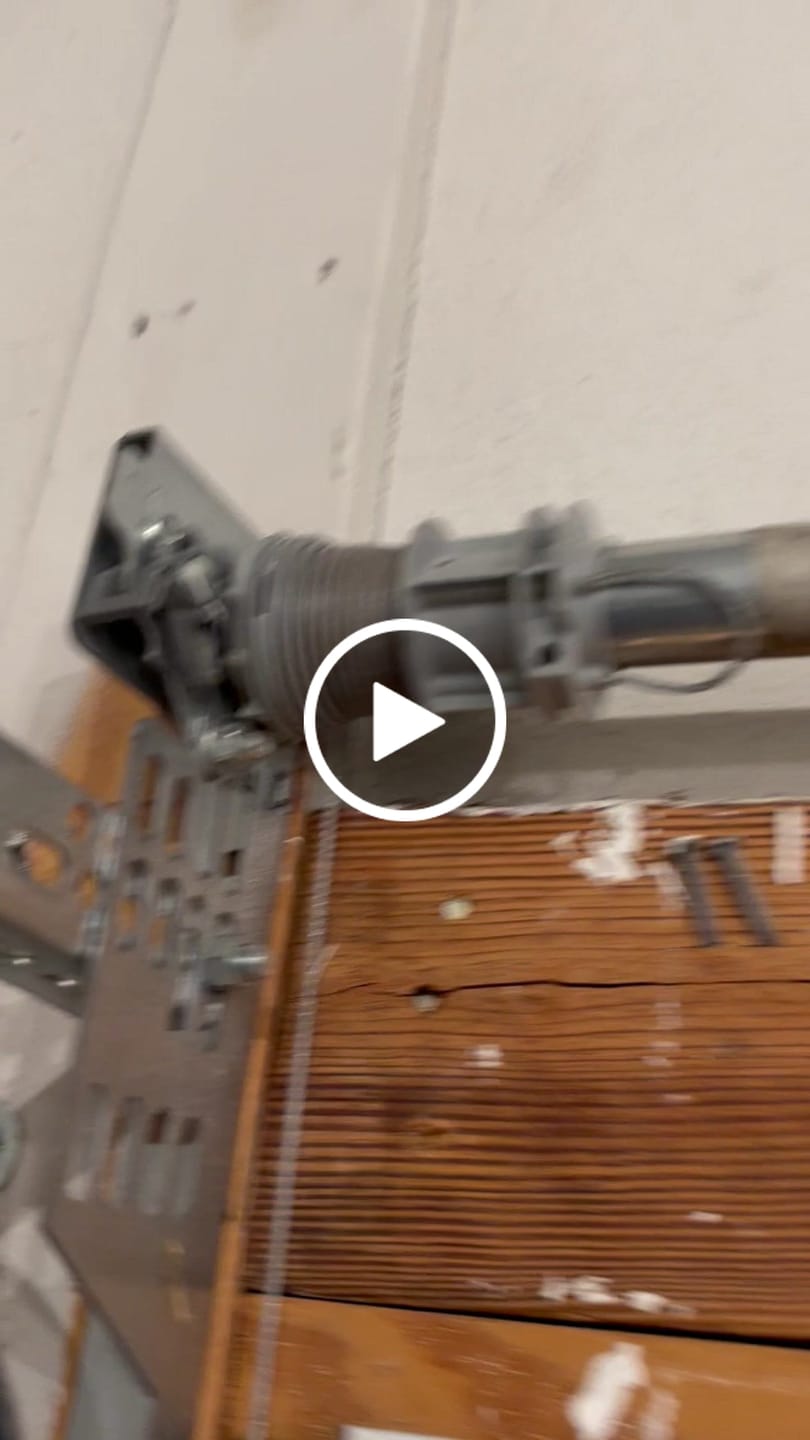

We ordered a new spring for our torquemaster plus in the garage. Purchasing was an easy and quick process. Item arrived sooner than initially estimated. And now our garage door is operable again! We will keep door-parts in mind next time a repair like this arises.
