TorqueMaster Upgrade Kit | Double Spring System
Only have one spring? Click here for the Single Spring System.
The TorqueMaster Upgrade kit converts your Original Spring System to the TorqueMaster Plus Spring System. (TM → TM3). TM1 parts have been discontinued and the TM3 is the new & improved counterbalance system by Wayne Dalton.
Save $50 by purchasing as a kit!
This kit includes:

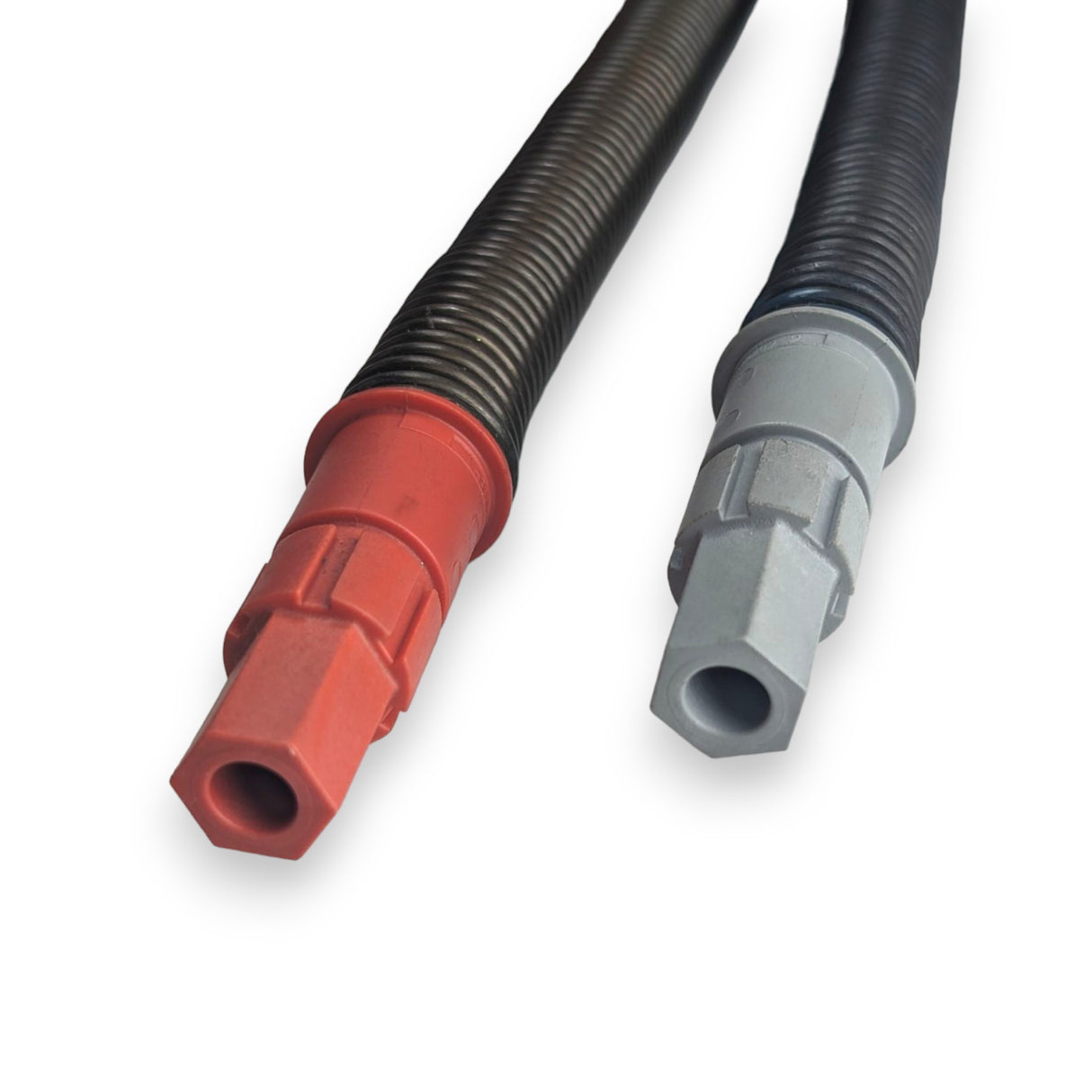

2x TorqueMaster Plus Springs (Left and Right)

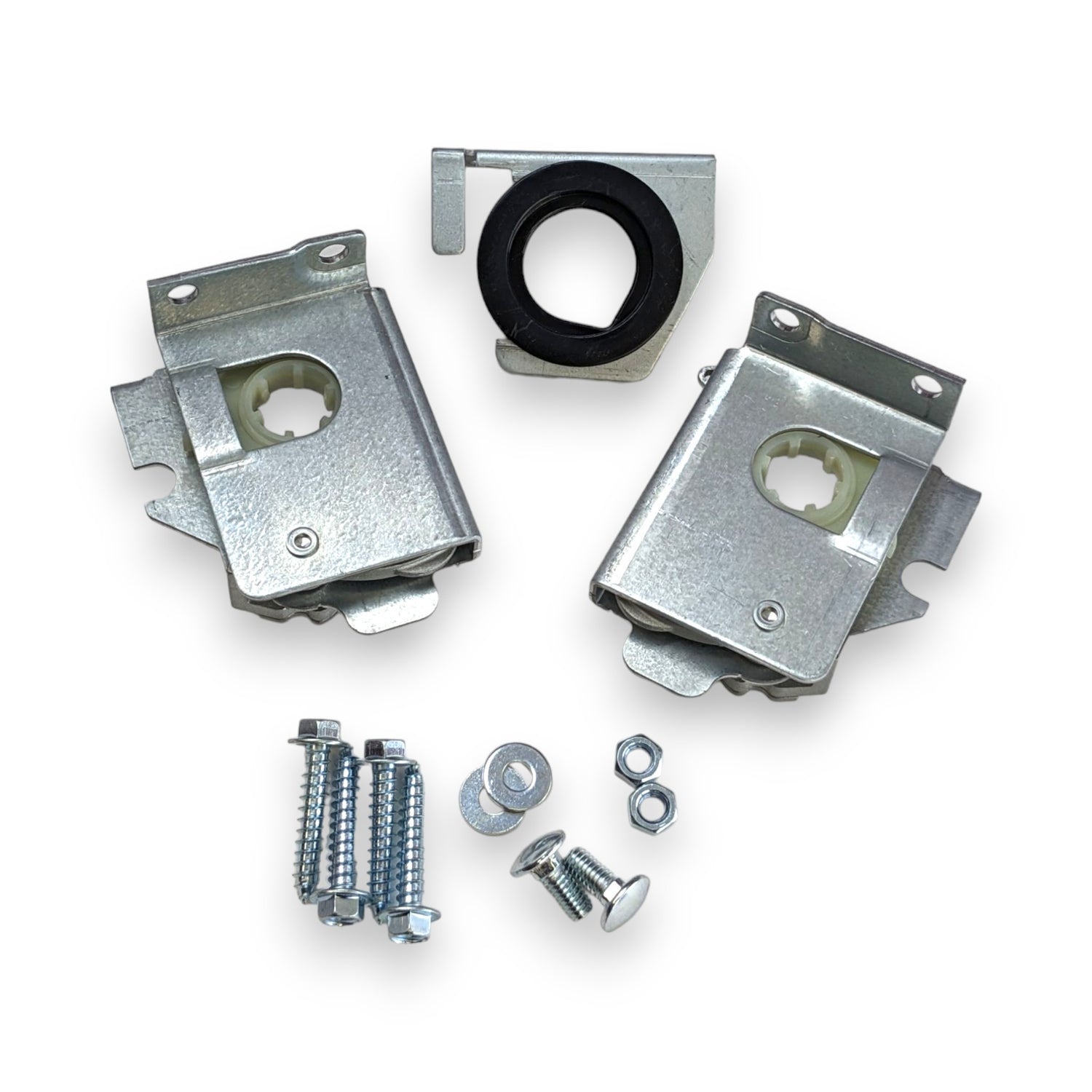

1x Double Spring Winding End Bracket Kit

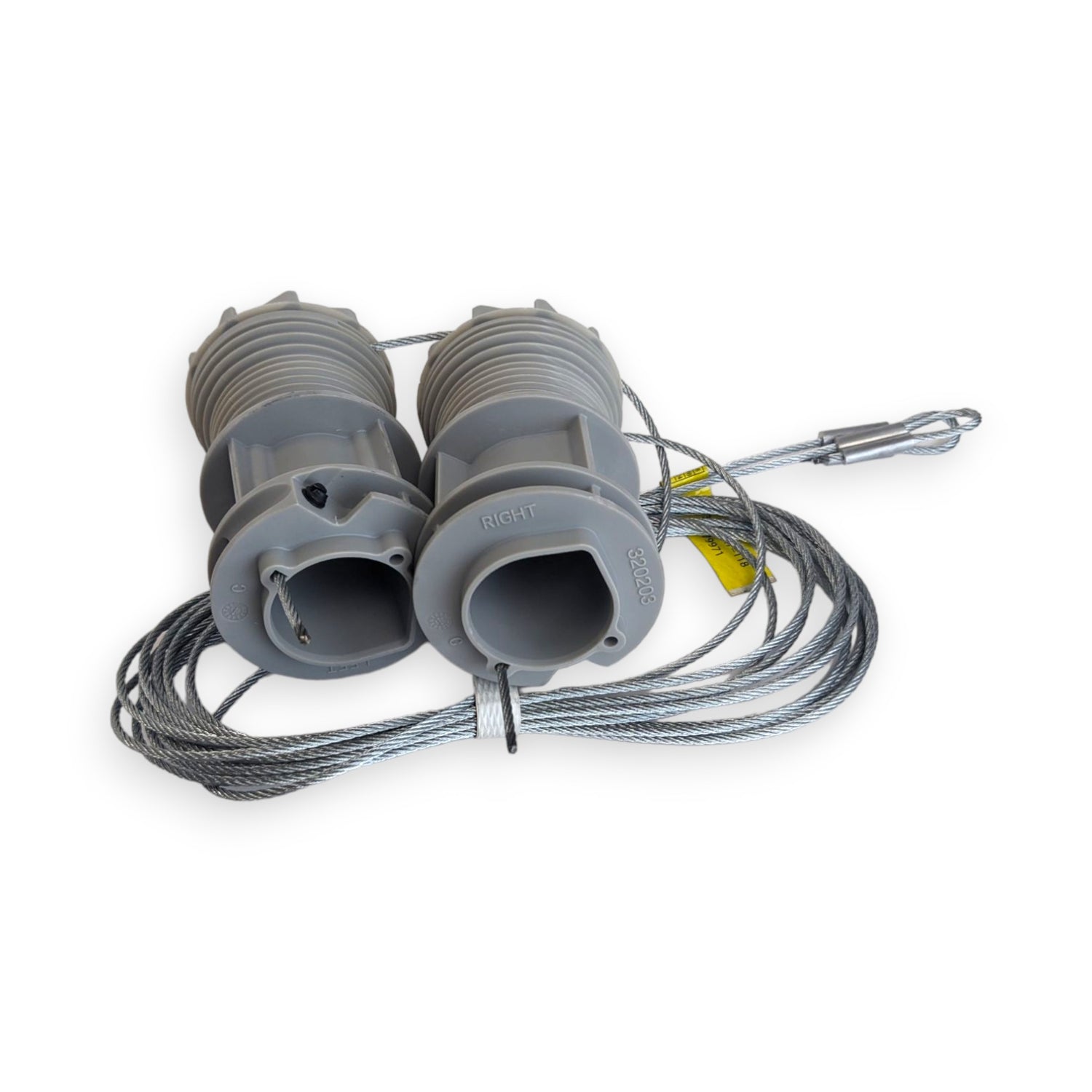

1x Cable and Drum Assembly Kit
TorqueMaster Upgrade Kit | Double Spring System
-
Spring TypeTorqueMaster Plus | TMP/TM3
-
Inside Diameter (ID)0.650
-
Left-Hand Spring
-
Right-Hand Spring
When replacing TorqueMaster Springs it is necessary to identify if the door utilizes the original TorqueMaster One, or the newer TorqueMaster Plus spring system.
The easiest way to distinguish these is by visually inspecting the end brackets. ToqueMaster One has a counter and winding fitting to the end, while TorqueMaster Plus has the anti-drop pawl and rachet gear inside the end bracket. You can also determine each type of spring system by looking at the winding shaft on the end of the springs.
The counterbalance weight (e.g. Wt. or Wgt.) on the sticker is the most important when determining the correct spring needed.
The spring's job is to store the mechanical energy from the weight of the door. When this is done correctly the Opener | Operator has to do minimal work. It is best practice to choose springs within 10 pounds of the garage door weight as outside that will cause the motor to work harder than needed to open/close the garage door.
How to Install ToqueMaster Springs
A quick and easy DIY project for your broken Wayne Dalton garage door.
