0.157X53.62 | TorqueMaster Plus Spring | TMP/TM3
Regular price
$84.97
Unit price
Wayne Dalton | SKU:

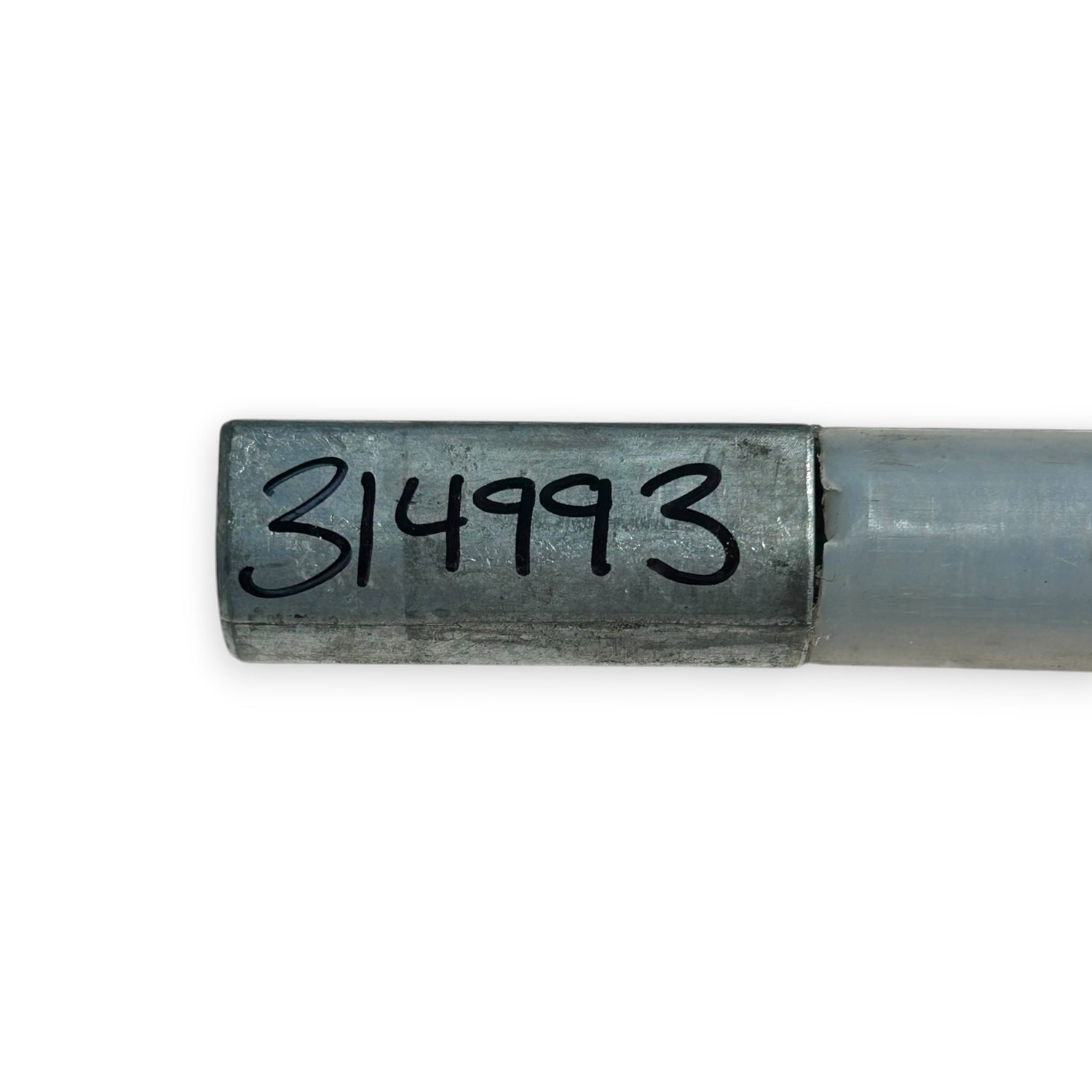

314993
If your door uses a two-spring TorqueMaster Plus system and one spring is 0.157X53.62 (RH), the matching Left-Hand (LH) spring is most often the following:
OEM Wayne Dalton TorqueMaster Spring replacements are in stock and ready to ship! Always verify the size of your opposite spring before ordering.
If you can not find your spring, please get in touch with us, and we will be happy to help.
0.157X53.62 | TorqueMaster Plus Spring | TMP/TM3
Regular price
$84.97
Unit price
-
Spring TypeTorqueMaster Plus | TMP/TM3
-
Counterbalance/Lift Weight95 - 100 LBS
-
Door Height6'0" - 7'0"
-
Inside Diameter (ID)0.650
-
Wire Size0.157
-
Coil Length53.62
-

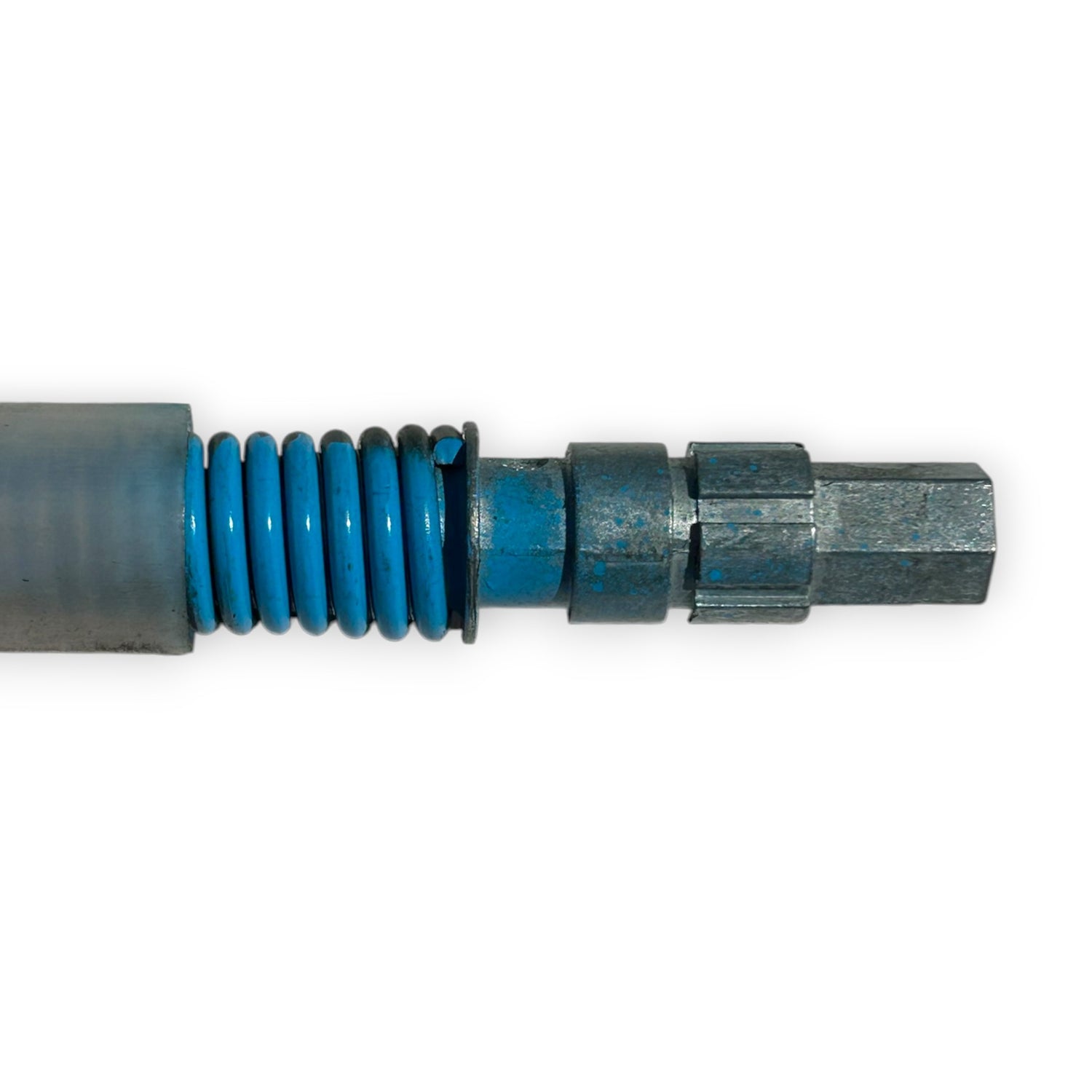

Color CodeLight Blue
-
Left-Hand Spring
-
Right-Hand Spring
When replacing TorqueMaster Springs it is necessary to identify if the door utilizes the original TorqueMaster One, or the newer TorqueMaster Plus spring system.
The easiest way to distinguish these is by visually inspecting the end brackets. ToqueMaster One has a counter and winding fitting to the end, while TorqueMaster Plus has the anti-drop pawl and rachet gear inside the end bracket. You can also determine each type of spring system by looking at the winding shaft on the end of the springs.
The counterbalance weight (e.g. Wt. or Wgt.) on the sticker is the most important when determining the correct spring needed.
The spring's job is to store the mechanical energy from the weight of the door. When this is done correctly the Opener | Operator has to do minimal work. It is best practice to choose springs within 10 pounds of the garage door weight as outside that will cause the motor to work harder than needed to open/close the garage door.
Corresponding Parts
Spring Label Example
These labels/stickers are located on the shaft that the springs are inside. Labels are often Yellow, Blue, or White and may have a slightly different layout than what is seen below.
